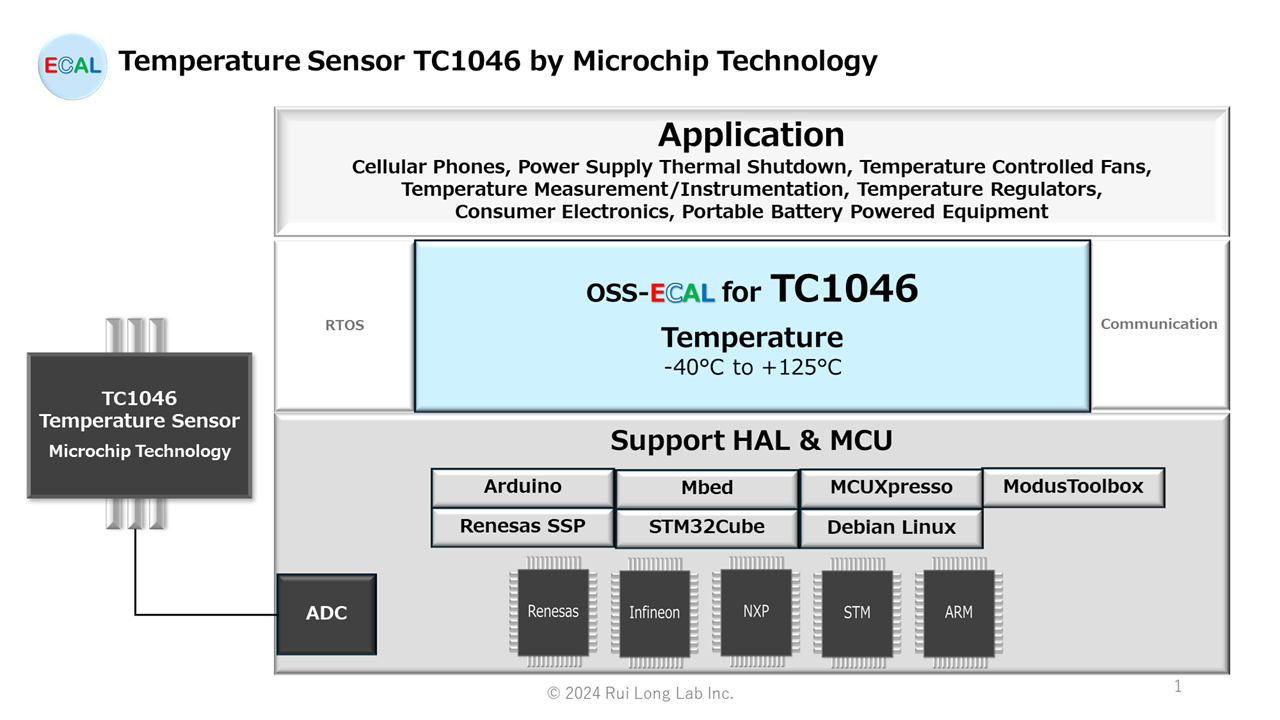

TC1046 is a temperatures sensor IC (-40 °C to +125 °C) made by Microchip Technology. This posting will provide the OSS-ECAL(Open Source Software for Electronic Components Abstraction Layer) for TC1046.
MCU interface : ADC
CAUTION:Please be sure to refer to the latest version of the Datasheet prior to actual design.
TC1046
General description
The TC1046 is a linear output temperature sensor whose output voltage is directly proportional to measured temperature. The TC1046 can accurately measure temperature from -40°C to +125°C.
The output voltage range for these devices is typically 174mV at -40°C, 424mV at 0°C, 580 mV at +25°C, and 1205mV at +125°C. A 6.25mV/°C voltage slope allows for the wide temperature range.
The TC1046 is packaged in a 3-Pin SOT-23B package, making them ideal for space critical applications.
Feature
- Supply Voltage Range:2.7V to 4.4V
- Wide Temperature Measurement Range:-40°C to +125°C
- High Temperature Converter Accuracy:± 2°C, Max, at 25°C
- Linear Temperature Slope: 6.25 mV/°C
- Very Low Supply Current:35 µA Typical
- Small 3-Pin SOT-23B Package
Application
- Cellular Phones
- Power Supply Thermal Shutdown
- Temperature-Controlled Fans
- Temperature Measurement/Instrumentation
- Temperature Regulators
- Consumer Electronics
- Portable Battery-Powered Equipment
OSS-ECAL specification
API Function
etSTS oTC1046( etCMD cmd, float32* rlt )
The oTC1046 function is an API function that executes TC1046 processing according to the command in the argument.
| Return value | etSTS | OSS-ECAL status code | |
| eSTS_FIN | Completed successfully | ||
| eSTS_ERR_MIN | Minimum temperature error (rlt is minimum temperature) | ||
| eSTS_ERR_MAX | Maximum temperature error (rlt is maximum temperature) | ||
| eSTS_ERR_HAL_ADC | HAL ADC Error | ||
| eSTS_ERR_COMMAND_CODE | Command selection error | ||
| eSTS_ERR_OTHERS_RUN | Other components are executing the process | ||
| eSTS_ERR_HAL_OTHERS_RUN | Other application is running HAL | ||
| eSTS_ERR_ADC_OBJECT | AD conversion object selection error | ||
| Parameter IN | etCMD cmd | OSS-ECAL command code | |
| eCMD_START | Command to start AD conversion. | ||
| eCMD_READ | Command that reads the AD conversion value, converts the AD conversion value to a characteristic Temperature, and stores the Temperature in rlt. AD conversion value to temperature conversion equation Voltage value = (AD conversion value × VDD) / ( 2AD bit ) Temperature = ((voltage value – voltage offset value) / gain) + Temperature offset value (Min, Max Limit) | ||
| eCMD_START_READ | Command that starts AD conversion, waits for AD conversion to finish, reads out the AD conversion value, converts the AD conversion value to a characteristic Temperature, and stores the Temperature in rlt. AD conversion value to temperature conversion equation Voltage value = (AD conversion value × VDD) / ( 2AD bit ) Temperature = ((voltage value – voltage offset value) / gain) + Temperature offset value (Min, Max Limit) | ||
| Parameter OUT | float32* rlt | Temperature -40.0 to +125.0 [°C] |
Command Correspondence Table by HAL
| Arduino | eCMD_START_READ |
| ARM Mbed | eCMD_START_READ |
| Debian(Linux) | eCMD_START_READ |
| Infineon ModusToolbox | eCMD_START_READ |
| NXP MCUXpresso iMXRT1051B_1052B | eCMD_START eCMD_READ eCMD_START_READ |
| Renesas SSP | eCMD_START eCMD_READ eCMD_START_READ |
| STM STM32Cube FW_F4 | eCMD_START eCMD_READ eCMD_START_READ |
etSTS oTC1046_START(void)
The oTC1046_START function is an API function to start AD conversion of the TC1046.
| Return value | etSTS | OSS-ECAL status code | |
| eSTS_FIN | Completed successfully | ||
| eSTS_ERR_HAL_ADC | HAL ADC Error | ||
| eSTS_ERR_OTHERS_RUN | Other components are executing the process | ||
| eSTS_ERR_HAL_OTHERS_RUN | Other application is running HAL | ||
| eSTS_ERR_ADC_OBJECT | AD conversion object selection error |
Function Correspondence Table by HAL
| Arduino | – |
| ARM Mbed | – |
| Debian(Linux) | – |
| Infineon ModusToolbox | – |
| NXP MCUXpresso iMXRT1051B_1052B | X |
| Renesas SSP | X |
| STM STM32Cube FW_F4 | X |
etSTS oTC1046_READ( float32* rlt )
The oTC1046_READ function is an API function that checks for the end of AD conversion of the TC1046, reads the AD conversion value, converts the AD conversion value to a characteristic temperature, and stores the temperature in rlt.
AD conversion value to temperature conversion equation
Voltage value = (AD conversion value × VDD) / ( 2AD bit )
Temperature = ((voltage value – voltage offset value) / gain) + Temperature offset value (Min, Max Limit)
| Return value | etSTS | OSS-ECAL status code | |
| eSTS_FIN | Completed successfully | ||
| eSTS_ERR_MIN | Minimum temperature error (rlt is minimum temperature) | ||
| eSTS_ERR_MAX | Maximum temperature error (rlt is maximum temperature) | ||
| eSTS_ERR_HAL_ADC | HAL ADC Error | ||
| eSTS_ERR_TIMEOUT | ADC Timeout error (AUTOSAR only) | ||
| eSTS_ERR_OTHERS_RUN | Other components are executing the process | ||
| eSTS_ERR_ADC_OBJECT | AD conversion object selection error | ||
| Parameter OUT | float32* rlt | Temperature -40.0 to +125.0 [°C] |
Function Correspondence Table by HAL
| Arduino | – | |
| ARM Mbed | – | |
| Debian(Linux) | – | |
| Infineon ModusToolbox | – | |
| NXP MCUXpresso iMXRT1051B_1052B | X | |
| Renesas SSP | X | |
| STM STM32Cube FW_F4 | X | Time-out time HAL_MAX_DELAY |
etSTS oTC1046_START_READ( float32* rlt )
The oTC1046_START_READ function is an API function that starts an AD conversion of the TC1046, waits for the AD conversion to finish, reads the AD conversion value, converts the AD conversion value to a temperature characteristic, and stores the temperature in rlt.
AD conversion value to temperature conversion equation
Voltage value = (AD conversion value × VDD) / ( 2AD bit )
Temperature = ((voltage value – voltage offset value) / gain) + Temperature offset value (Min, Max Limit)
| Return value | etSTS | OSS-ECAL status code | |
| eSTS_FIN | Completed successfully | ||
| eSTS_ERR_MIN | Minimum temperature error (rlt is minimum temperature) | ||
| eSTS_ERR_MAX | Maximum temperature error (rlt is maximum temperature) | ||
| eSTS_ERR_HAL_ADC | HAL ADC Error | ||
| eSTS_ERR_OTHERS_RUN | Other components are executing the process | ||
| eSTS_ERR_HAL_OTHERS_RUN | Other application is running HAL | ||
| eSTS_ERR_ADC_OBJECT | AD conversion object selection error | ||
| Parameter OUT | float32* rlt | Temperature -40.0 to +125.0 [°C] |
Function Correspondence Table by HAL
| Arduino | X | |
| ARM Mbed | X | |
| Debian(Linux) | X | |
| Infineon ModusToolbox | X | |
| NXP MCUXpresso iMXRT1051B_1052B | X | |
| Renesas SSP | X | |
| STM STM32Cube FW_F4 | X | Time-out time HAL_MAX_DELAY |
Files
| Folder* | File | Summary |
|---|---|---|
| TC1046_HALNAME_VERSION/sample | sample.c (.cpp) | Sample Application Program |
| sample.h | Sample Application Header | |
| TC1046_HALNAME_VERSION | oTC1046.c (.cpp) | OSS-ECAL Program for TC1046 |
| oTC1046.h | OSS-ECAL Header for TC1046 | |
| TC1046_ARDUINO.ino | Sample application programs for Arduino | |
| oss_ecal.h | OSS-ECAL Common Header (Ver 01.00.00 or later) | |
| user_setting.c (.cpp) | Const and Table of User setting | |
| user_setting.h | Header of User setting | |
| readme.md | Readme | |
| OSS-ECAL Terms of Use.txt | OSS-ECAL Terms of Use |
* For HALNAME, please refer to HAL Support.
HAL Support List
| HAL | MCU* | Development environment* | HALNAME |
|---|---|---|---|
| Arduino 1.8.6 | ATmega2560 ATmega328P | Mega 2560 Rev3 Arduino Pro Mini 3.3V | ARDUINO |
| ARM Mbed 6.17.0 | STM32F401RE | STM32 Nucleo-64 boards | MBED |
| Infineon ModusToolbox HAL Cat1 2.4.3 | CYBLE-416045-02 | CY8CPROTO-063-BLE PSoC 6 BLE Prototyping Kit | ModusToolbox |
| NXP MCUXpresso SDK iMXRT1051B_1052B ksdk2_0 | MIMXRT1052DVL6A | IMXRT1050-EVKB | iMXRT1051B1052B |
| Renesas SSP 2.4.0 | R7FS7G27H3A01CFC | S7G2 SK | SSP |
| STM STM32Cube FW_F4 V1.27.1 | STM32F401RE | STM32 Nucleo-64 boards | STM32F4 |
| Debian(Linux) v2022.04 | TI AM335x | BeagleBone Black – Rev C | Linux |
* MCU and development environment at the time of development. Even if the same HAL is used, different MCUs and development environments may not work together.
OSS-ECAL Download
Please login before downloading. To register as a new user, please click here.
This OSS-ECAL is a sample version and can be downloaded without user registration, but please accept the OSS-ECAL Terms of Use before downloading.
| HAL | Download OSS-ECAL Ver |
|---|---|
| ARDUINO | |
| MBED | |
| ModusToolbox | |
| iMXRT1051B1052B | |
| SSP | |
| STM32F4 | |
| Linux |
If you are unable to download the File, please contact us and let us know the model number and HAL type. We will send you the file as an email attachment.
Built-in How to
How to incorporate OSS-ECAL into user programs
How to incorporate multiple OSS-ECALs in a user program (same MCU function)
How to incorporate multiple OSS-ECALs in a user program (different MCU function)
How to incorporate multiple identical electronic components into a user program
How to reduce the impact on user programs by replacing electronic components
CAUTION
The sample version of OSS-ECAL is not intended to be used with Threads (Tasks) or interrupts of different priority. Please do not use it as in the example below.
Example: If each sensor is assigned to the same ADC group and the OSS-ECAL API is executed in processes with different priorities, correct values may not be obtained.
ADC Gr0 Ch0 Temperature sensor AD22100A 100ms cycle Thread (low priority) to take in temperature
ADC Gr0 Ch1 Pressure sensor MPX5999D Event interrupts (high priority) to take pressure
