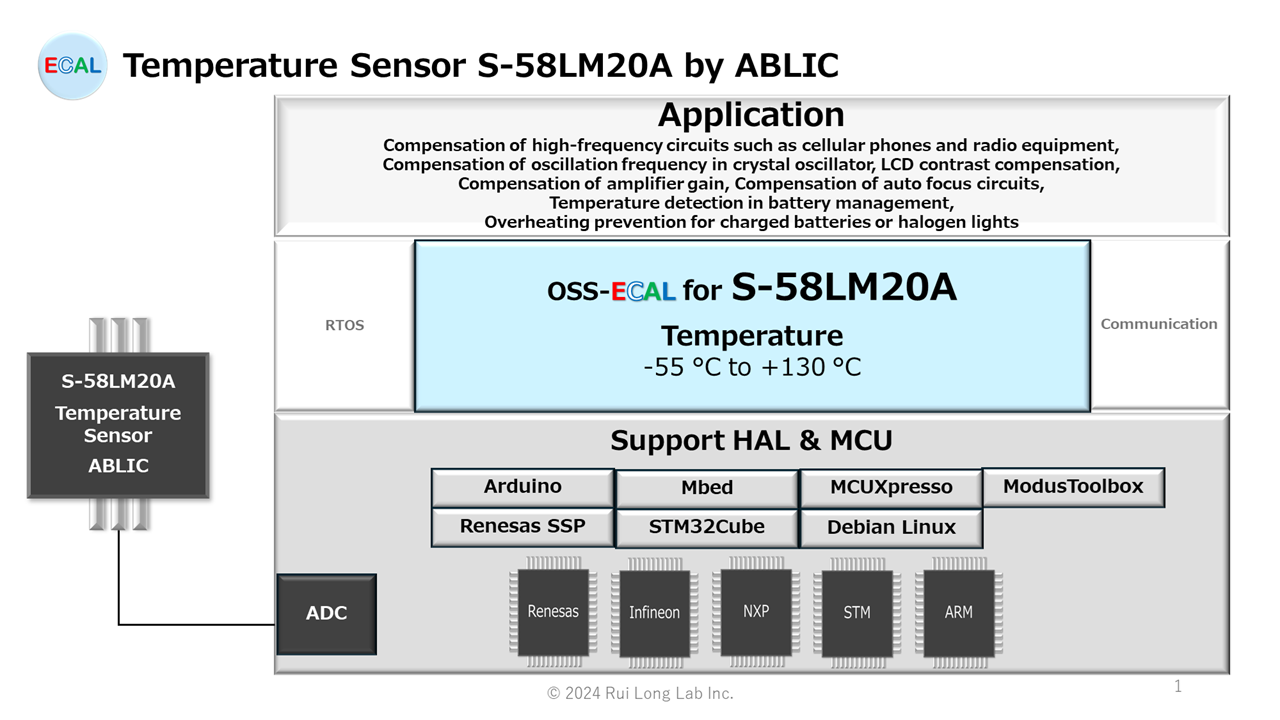

S-58LM20A is a temperatures sensor IC (-55 to +130 °C) made by ABLIC. This posting will provide the OSS-ECAL(Open Source Software for Electronic Components Abstraction Layer) for S-58LM20A.
MCU interface : ADC
CAUTION:Please be sure to refer to the latest version of the Datasheet prior to actual design.
S-58LM20A
General description
The S-58LM20A Series is a high-accuracy temperature sensor IC on a single chip, provides output voltage which is linear
against the temperature change.
Each chip consists of a temperature sensor, a constant current circuit, and an operational amplifier.
The operating ambient temperature is from –55°C to 130°C. This IC has much better linearity than other conventional
temperature sensors such as thermistor, it is possible to achieve the extensive application for temperature control.
Feature
- Temperature accuracy : ±2.5°C (-55°C to +130°C)
- Linear output voltage
–11.77 mV/°C typ.
Ta = -30°C : 2.205 V typ.
Ta = +30°C: 1.515 V typ.
Ta = +130°C: 0.303 V typ. - Nonlinearity ±0.4% typ. (-20°C to +80°C)
- Wide power supply voltage operation
VDD = 2.4 V to 10.0 V(-30°C to +130°C)
VDD = 2.7 V to 10.0 V(-55°C to +130°C) - Low current consumption 4.5 μA typ. (+25°C) 6.0 μA typ. (-55°C to +130°C)
- Built-in operational amplifier
- Output voltage referred to VSS
- Lead-free, Sn 100%, halogen-free
Application
- Compensation of high-frequency circuits such as cellular phones and radio equipment
- Compensation of oscillation frequency in crystal oscillator
- LCD contrast compensation
- Compensation of amplifier gain
- Compensation of auto focus circuits
- Temperature detection in battery management
- Overheating prevention for charged batteries or halogen lights
OSS-ECAL specification
API Function
etSTS oS58LM20A( etCMD cmd, float32* rlt )
The oS58LM20A function is an API function that executes S-58LM20A processing according to the command in the argument.
| Return value | etSTS | OSS-ECAL status code | |
| eSTS_FIN | Completed successfully | ||
| eSTS_ERR_MIN | Minimum temperature error (rlt is minimum temperature) | ||
| eSTS_ERR_MAX | Maximum temperature error (rlt is maximum temperature) | ||
| eSTS_ERR_HAL_ADC | HAL ADC Error | ||
| eSTS_ERR_COMMAND_CODE | Command selection error | ||
| eSTS_ERR_OTHERS_RUN | Other components are executing the process | ||
| eSTS_ERR_HAL_OTHERS_RUN | Other application is running HAL | ||
| eSTS_ERR_ADC_OBJECT | AD conversion object selection error | ||
| Parameter IN | etCMD cmd | OSS-ECAL command code | |
| eCMD_START | Command to start AD conversion. | ||
| eCMD_READ | Command that reads the AD conversion value, converts the AD conversion value to a characteristic Temperature, and stores the Temperature in rlt. AD conversion value to temperature conversion equation Voltage value = (AD conversion value × VDD) / ( 2AD bit ) Temperature = ((voltage value – voltage offset value) / gain) + Temperature offset value (Min, Max Limit) | ||
| eCMD_START_READ | Command that starts AD conversion, waits for AD conversion to finish, reads out the AD conversion value, converts the AD conversion value to a characteristic Temperature, and stores the Temperature in rlt. AD conversion value to temperature conversion equation Voltage value = (AD conversion value × VDD) / ( 2AD bit ) Temperature = ((voltage value – voltage offset value) / gain) + Temperature offset value (Min, Max Limit) | ||
| Parameter OUT | float32* rlt | Temperature -55.0 to +130.0 [°C] |
Command Correspondence Table by HAL
| Arduino | Arduino | eCMD_START_READ |
| ARM | Mbed | eCMD_START_READ |
| Debian Project | Debian(Linux) | eCMD_START_READ |
| Infineon | ModusToolbox | eCMD_START_READ |
| NXP | MCUXpresso MXRT1051B_1052B | eCMD_START eCMD_READ eCMD_START_READ |
| Renesas | SSP | eCMD_START eCMD_READ eCMD_START_READ |
| STM | STM32Cube FW_F4 | eCMD_START eCMD_READ eCMD_START_READ |
etSTS oS58LM20A_START(void)
The oS58LM20A_START function is an API function to start AD conversion of the S-58LM20A.
| Return value | etSTS | OSS-ECAL status code | |
| eSTS_FIN | Completed successfully | ||
| eSTS_ERR_HAL_ADC | HAL ADC Error | ||
| eSTS_ERR_OTHERS_RUN | Other components are executing the process | ||
| eSTS_ERR_HAL_OTHERS_RUN | Other application is running HAL | ||
| eSTS_ERR_ADC_OBJECT | AD conversion object selection error |
Function Correspondence Table by HAL
| Arduino | Arduino | – |
| ARM | Mbed | – |
| Debian Project | Debian(Linux) | – |
| Infineon | ModusToolbox | – |
| NXP | MCUXpresso MXRT1051B_1052B | X |
| Renesas | SSP | X |
| STM | STM32Cube FW_F4 | X |
etSTS oS58LM20A_READ( float32* rlt )
The oS58LM20A_READ function is an API function that checks for the end of AD conversion of the S-58LM20A, reads the AD conversion value, converts the AD conversion value to a characteristic temperature, and stores the temperature in rlt.
AD conversion value to temperature conversion equation
Voltage value = (AD conversion value × VDD) / ( 2AD bit )
Temperature = ((voltage value – voltage offset value) / gain) + Temperature offset value (Min, Max Limit)
| Return value | etSTS | OSS-ECAL status code | |
| eSTS_FIN | Completed successfully | ||
| eSTS_ERR_MIN | Minimum temperature error (rlt is minimum temperature) | ||
| eSTS_ERR_MAX | Maximum temperature error (rlt is maximum temperature) | ||
| eSTS_ERR_HAL_ADC | HAL ADC Error | ||
| eSTS_ERR_TIMEOUT | ADC Timeout error (AUTOSAR only) | ||
| eSTS_ERR_OTHERS_RUN | Other components are executing the process | ||
| eSTS_ERR_ADC_OBJECT | AD conversion object selection error | ||
| Parameter OUT | float32* rlt | Temperature -55.0 to +130.0 [°C] |
Function Correspondence Table by HAL
| Arduino | Arduino | – | |
| ARM | Mbed | – | |
| Debian Project | Debian(Linux) | – | |
| Infineon | ModusToolbox | – | |
| NXP | MCUXpresso MXRT1051B_1052B | X | |
| Renesas | SSP | X | |
| STM | STM32Cube FW_F4 | X | Time-out time HAL_MAX_DELAY |
etSTS oS58LM20A_START_READ( float32* rlt )
The oS58LM20A_START_READ function is an API function that starts an AD conversion of the S-58LM20A, waits for the AD conversion to finish, reads the AD conversion value, converts the AD conversion value to a temperature characteristic, and stores the temperature in rlt.
AD conversion value to temperature conversion equation
Voltage value = (AD conversion value × VDD) / ( 2AD bit )
Temperature = ((voltage value – voltage offset value) / gain) + Temperature offset value (Min, Max Limit)
| Return value | etSTS | OSS-ECAL status code | |
| eSTS_FIN | Completed successfully | ||
| eSTS_ERR_MIN | Minimum temperature error (rlt is minimum temperature) | ||
| eSTS_ERR_MAX | Maximum temperature error (rlt is maximum temperature) | ||
| eSTS_ERR_HAL_ADC | HAL ADC Error | ||
| eSTS_ERR_OTHERS_RUN | Other components are executing the process | ||
| eSTS_ERR_HAL_OTHERS_RUN | Other application is running HAL | ||
| eSTS_ERR_ADC_OBJECT | AD conversion object selection error | ||
| Parameter OUT | float32* rlt | Temperature -55.0 to +130.0 [°C] |
Function Correspondence Table by HAL
| Arduino | Arduino | X | |
| ARM | Mbed | X | |
| Debian Project | Debian(Linux) | X | |
| Infineon | ModusToolbox | X | |
| NXP | MCUXpresso MXRT1051B_1052B | X | |
| Renesas | SSP | X | |
| STM | STM32Cube FW_F4 | X | Time-out time HAL_MAX_DELAY |
Files
| Folder* | File | Summary |
|---|---|---|
| S58LM20A_HALNAME_VERSION/sample | sample.c (.cpp) | Sample Application Program |
| sample.h | Sample Application Header | |
| S58LM20A_HALNAME_VERSION | oS58LM20A.c (.cpp) | OSS-ECAL Program for S-58LM20A |
| oS58LM20A.h | OSS-ECAL Header for S-58LM20A | |
| S58LM20A_ARDUINO.ino | Sample application programs for Arduino | |
| oss_ecal.h | OSS-ECAL Common Header (Ver 01.00.00 or later) | |
| user_setting.c (.cpp) | Const and Table of User setting | |
| user_setting.h | Header of User setting | |
| readme.md | Readme | |
| OSS-ECAL Terms of Use.txt | OSS-ECAL Terms of Use |
* For HALNAME, please refer to HAL Support.
HAL Support List
| MCU/Board manufacturer | HAL | MCU* | Development environment* | HALNAME |
|---|---|---|---|---|
| Arduino | Arduino 1.8.6 | ATmega2560 ATmega328P | Mega 2560 Rev3 Arduino Pro Mini 3.3V | ARDUINO |
| ARM | Mbed 6.17.0 | STM32F401RE | STM32 Nucleo-64 boards | MBED |
| Infineon | ModusToolbox HAL Cat1 2.4.3 | CYBLE-416045-02 | CY8CPROTO-063-BLE PSoC 6 BLE Prototyping Kit | ModusToolbox |
| NXP | MCUXpresso SDK iMXRT1051B_1052B ksdk2_0 | MIMXRT1052DVL6A | IMXRT1050-EVKB | iMXRT1051B1052B |
| Renesas | SSP 2.4.0 | R7FS7G27H3A01CFC | S7G2 SK | SSP |
| STM | STM32Cube FW_F4 V1.27.1 | STM32F401RE | STM32 Nucleo-64 boards | STM32F4 |
| Debian Project | Debian(Linux) v2022.04 | TI AM335x | BeagleBone Black – Rev C | Linux |
* MCU and development environment at the time of development. Even if the same HAL is used, different MCUs and development environments may not work together.
OSS-ECAL Download
Please login before downloading. To register as a new user, please click here.
This OSS-ECAL is a sample version and can be downloaded without user registration, but please accept the OSS-ECAL Terms of Use before downloading.
| HAL | Download OSS-ECAL Ver |
|---|---|
| Arduino 1.8.6 | |
| Mbed 6.17.0 | |
| ModusToolbox HAL Cat1 2.4.3 | |
| MCUXpresso SDK iMXRT1051B_1052B ksdk2_0 | |
| SSP 2.4.0 | |
| STM32Cube FW_F4 V1.27.1 | |
| Debian(Linux) v2022.04 |
If you are unable to download the File, please contact us and let us know the model number and HAL type. We will send you the file as an email attachment.
