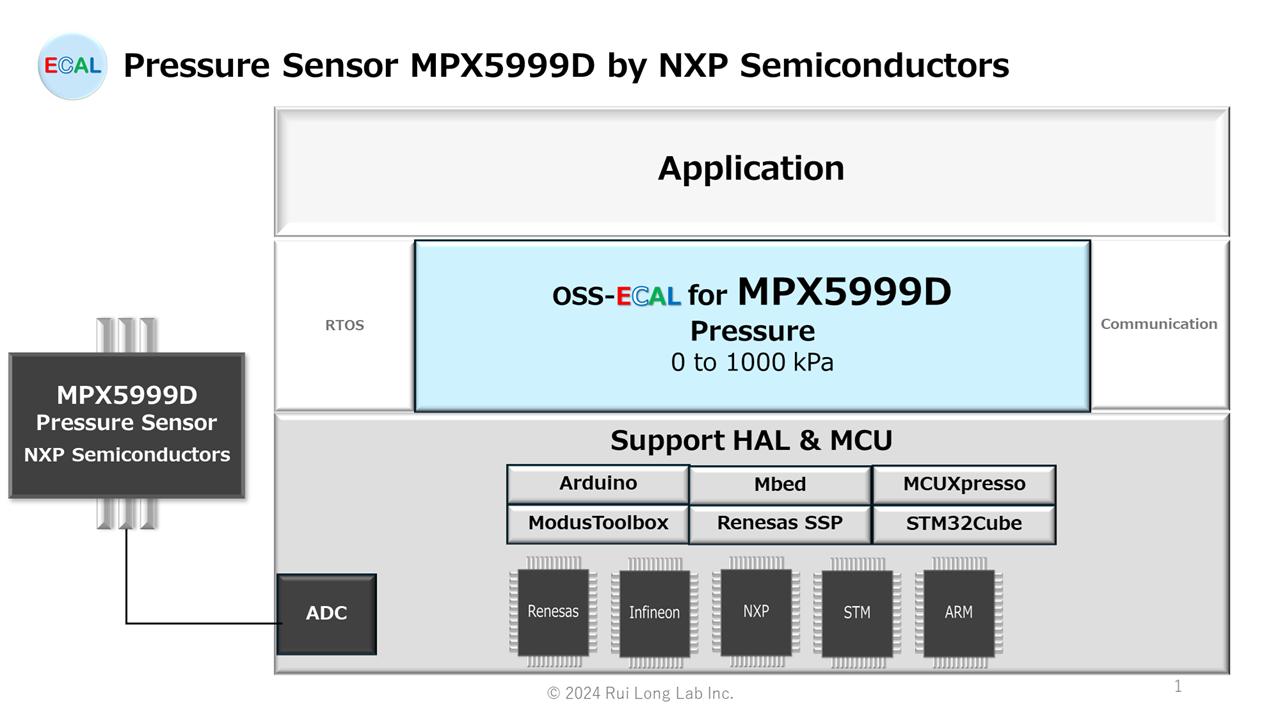

MPX5999D is a pressure sensor IC (0 kPa to 1000 kPa) made by NXP Semiconductors. This posting will provide the OSS-ECAL(Open Source Software for Electronic Components Abstraction Layer) for MPX5999D.
MCU interface : ADC
CAUTION:Please be sure to refer to the latest version of the Datasheet prior to actual design.
MPX5999D
General description
The MPX5999D piezoresistive transducer is a state-of-the-art pressure sensor designed for a wide range of applications, but particularly for those employing a microcontroller or microprocessor with A/D inputs. This patented, single element transducer combines advanced micromachining techniques, thin-film metallization and bipolar semiconductor processing to provide an accurate, high level analog output signal that is proportional to applied pressure.
Feature
- Temperature Compensated Over 0 to 85 °C
- Ideally Suited for Microprocessor or Microcontroller-Based Systems
- Patented Silicon Shear Stress Strain Gauge
- Durable Epoxy Unibody Element
Application
OSS-ECAL specification
API Function
etSTS oMPX5999D( etCMD cmd, float32* rlt )
The oMPX5999D function is an API function that executes MPX5999D processing according to the command in the argument.
| Return value | etSTS | OSS-ECAL status code | |
| eSTS_FIN | Completed successfully | ||
| eSTS_ERR_MIN | Minimum Pressure error (rlt is minimum Pressure) | ||
| eSTS_ERR_MAX | Maximum Pressure error (rlt is maximum Pressure) | ||
| eSTS_ERR_HAL_ADC | HAL ADC Error | ||
| eSTS_ERR_COMMAND_CODE | Command selection error | ||
| eSTS_ERR_OTHERS_RUN | Other components are executing the process | ||
| eSTS_ERR_HAL_OTHERS_RUN | Other application is running HAL | ||
| eSTS_ERR_ADC_OBJECT | AD conversion object selection error | ||
| Parameter IN | etCMD cmd | OSS-ECAL command code | |
| eCMD_START | Command to start AD conversion. | ||
| eCMD_READ | Command that reads the AD conversion value, converts the AD conversion value to a characteristic Pressure, and stores the Pressure in rlt. AD conversion value to Pressure conversion equation Voltage value = (AD conversion value × VDD) / ( 2AD bit ) Pressure = ((voltage value – voltage offset value) / gain) + Pressure offset value (Min, Max Limit) | ||
| eCMD_START_READ | Command that starts AD conversion, waits for AD conversion to finish, reads out the AD conversion value, converts the AD conversion value to a characteristic Pressure, and stores the Pressure in rlt. AD conversion value to Pressure conversion equation Voltage value = (AD conversion value × VDD) / ( 2AD bit ) Pressure = ((voltage value – voltage offset value) / gain) + Pressure offset value (Min, Max Limit) | ||
| Parameter OUT | float32* rlt | Pressure 0.0 to 1000.0 [kPa] |
Command Correspondence Table by HAL
| Arduino | Arduino | eCMD_START_READ |
| ARM | Mbed | eCMD_START_READ |
| Infineon | ModusToolbox | eCMD_START_READ |
| NXP | MCUXpresso MXRT1051B_1052B | eCMD_START eCMD_READ eCMD_START_READ |
| Renesas | SSP | eCMD_START eCMD_READ eCMD_START_READ |
| STM | STM32Cube FW_F4 | eCMD_START eCMD_READ eCMD_START_READ |
etSTS oMPX5999D_START(void)
The oMPX5999D_START function is an API function to start AD conversion of the MPX5999D.
| Return value | etSTS | OSS-ECAL status code | |
| eSTS_FIN | Completed successfully | ||
| eSTS_ERR_HAL_ADC | HAL ADC Error | ||
| eSTS_ERR_OTHERS_RUN | Other components are executing the process | ||
| eSTS_ERR_HAL_OTHERS_RUN | Other application is running HAL | ||
| eSTS_ERR_ADC_OBJECT | AD conversion object selection error |
Function Correspondence Table by HAL
| Arduino | Arduino | – |
| ARM | Mbed | – |
| Infineon | ModusToolbox | – |
| NXP | MCUXpresso MXRT1051B_1052B | X |
| Renesas | SSP | X |
| STM | STM32Cube FW_F4 | X |
etSTS oMPX5999D_READ( float32* rlt )
The oMPX5999D_READ function is an API function that checks for the end of AD conversion of the MPX5999D, reads the AD conversion value, converts the AD conversion value to a characteristic Pressure, and stores the Pressure in rlt.
AD conversion value to Pressure conversion equation
Voltage value = (AD conversion value × VDD) / ( 2AD bit )
Pressure = ((voltage value – voltage offset value) / gain) + Pressure offset value (Min, Max Limit)
| Return value | etSTS | OSS-ECAL status code | |
| eSTS_FIN | Completed successfully | ||
| eSTS_ERR_MIN | Minimum Pressure error (rlt is minimum Pressure) | ||
| eSTS_ERR_MAX | Maximum Pressure error (rlt is maximum Pressure) | ||
| eSTS_ERR_HAL_ADC | HAL ADC Error | ||
| eSTS_ERR_TIMEOUT | ADC Timeout error (AUTOSAR only) | ||
| eSTS_ERR_OTHERS_RUN | Other components are executing the process | ||
| eSTS_ERR_ADC_OBJECT | AD conversion object selection error | ||
| Parameter OUT | float32* rlt | Pressure 0.0 to 1000.0 [kPa] |
Function Correspondence Table by HAL
| Arduino | Arduino | – | |
| ARM | Mbed | – | |
| Infineon | ModusToolbox | – | |
| NXP | MCUXpresso MXRT1051B_1052B | X | |
| Renesas | SSP | X | |
| STM | STM32Cube FW_F4 | X | Time-out time HAL_MAX_DELAY |
etSTS oMPX5999D_START_READ( float32* rlt )
The oMPX5999D_START_READ function is an API function that starts an AD conversion of the MPX5999D, waits for the AD conversion to finish, reads the AD conversion value, converts the AD conversion value to a Pressure characteristic, and stores the Pressure in rlt.
AD conversion value to Pressure conversion equation
Voltage value = (AD conversion value × VDD) / ( 2AD bit )
Pressure = ((voltage value – voltage offset value) / gain) + Pressure offset value (Min, Max Limit)
| Return value | etSTS | OSS-ECAL status code | |
| eSTS_FIN | Completed successfully | ||
| eSTS_ERR_MIN | Minimum Pressure error (rlt is minimum Pressure) | ||
| eSTS_ERR_MAX | Maximum Pressure error (rlt is maximum Pressure) | ||
| eSTS_ERR_HAL_ADC | HAL ADC Error | ||
| eSTS_ERR_OTHERS_RUN | Other components are executing the process | ||
| eSTS_ERR_HAL_OTHERS_RUN | Other application is running HAL | ||
| eSTS_ERR_ADC_OBJECT | AD conversion object selection error | ||
| Parameter OUT | float32* rlt | Pressure 0.0 to 1000.0 [kPa] |
Function Correspondence Table by HAL
| Arduino | Arduino | X | |
| ARM | Mbed | X | |
| Infineon | ModusToolbox | X | |
| NXP | MCUXpresso MXRT1051B_1052B | X | |
| Renesas | SSP | X | |
| STM | STM32Cube FW_F4 | X | Time-out time HAL_MAX_DELAY |
Files
| Folder* | File | Summary |
|---|---|---|
| MPX5999D_HALNAME_VERSION/sample | sample.c (.cpp) | Sample Application Program |
| sample.h | Sample Application Header | |
| MPX5999D_HALNAME_VERSION | oMPX5999D.c (.cpp) | OSS-ECAL Program for MPX5999D |
| oMPX5999D.h | OSS-ECAL Header for MPX5999D | |
| MPX5999D_ARDUINO.ino | Sample application programs for Arduino | |
| oss_ecal.h | OSS-ECAL Common Header (Ver 01.00.00 or later, AUTOSAR is Ver 01.01.07 or later) | |
| oTypes.h | Typedef header file for AUTOSAR | |
| user_setting.c (.cpp) | Const and Table of User setting | |
| user_setting.h | Header of User setting | |
| readme.md | Readme | |
| OSS-ECAL Terms of Use.txt | OSS-ECAL Terms of Use |
* For HALNAME, please refer to HAL Support.
HAL Support List
| MCU/Board manufacturer | HAL | MCU* | Development environment* | HALNAME |
|---|---|---|---|---|
| Arduino | Arduino 1.8.6 | ATmega2560 ATmega328P | Mega 2560 Rev3 Arduino Pro Mini 3.3V | ARDUINO |
| ARM | Mbed 6.17.0 | STM32F401RE | STM32 Nucleo-64 boards | MBED |
| Infineon | ModusToolbox HAL Cat1 2.4.3 | CYBLE-416045-02 | CY8CPROTO-063-BLE PSoC 6 BLE Prototyping Kit | ModusToolbox |
| NXP | MCUXpresso SDK iMXRT1051B_1052B ksdk2_0 | MIMXRT1052DVL6A | IMXRT1050-EVKB | iMXRT1051B1052B |
| Renesas | SSP 2.4.0 | R7FS7G27H3A01CFC | S7G2 SK | SSP |
| STM | STM32Cube FW_F4 V1.27.1 | STM32F401RE | STM32 Nucleo-64 boards | STM32F4 |
* MCU and development environment at the time of development. Even if the same HAL is used, different MCUs and development environments may not work together.
OSS-ECAL Download
Please login before downloading. To register as a new user, please click here.
This OSS-ECAL is a sample version and can be downloaded without user registration, but please accept the OSS-ECAL Terms of Use before downloading.
| HAL | Download OSS-ECAL Ver |
|---|---|
| Arduino 1.8.6 | |
| Mbed 6.17.0 | |
| ModusToolbox HAL Cat1 2.4.3 | |
| MCUXpresso SDK iMXRT1051B_1052B ksdk2_0 | |
| SSP 2.4.0 | |
| STM32Cube FW_F4 V1.27.1 |
If you are unable to download the File, please contact us and let us know the model number and HAL type. We will send you the file as an email attachment.
Built-in How to
How to incorporate OSS-ECAL into user programs
How to incorporate multiple OSS-ECALs in a user program (same MCU function)
How to incorporate multiple OSS-ECALs in a user program (different MCU function)
How to incorporate multiple identical electronic components into a user program
How to reduce the impact on user programs by replacing electronic components
